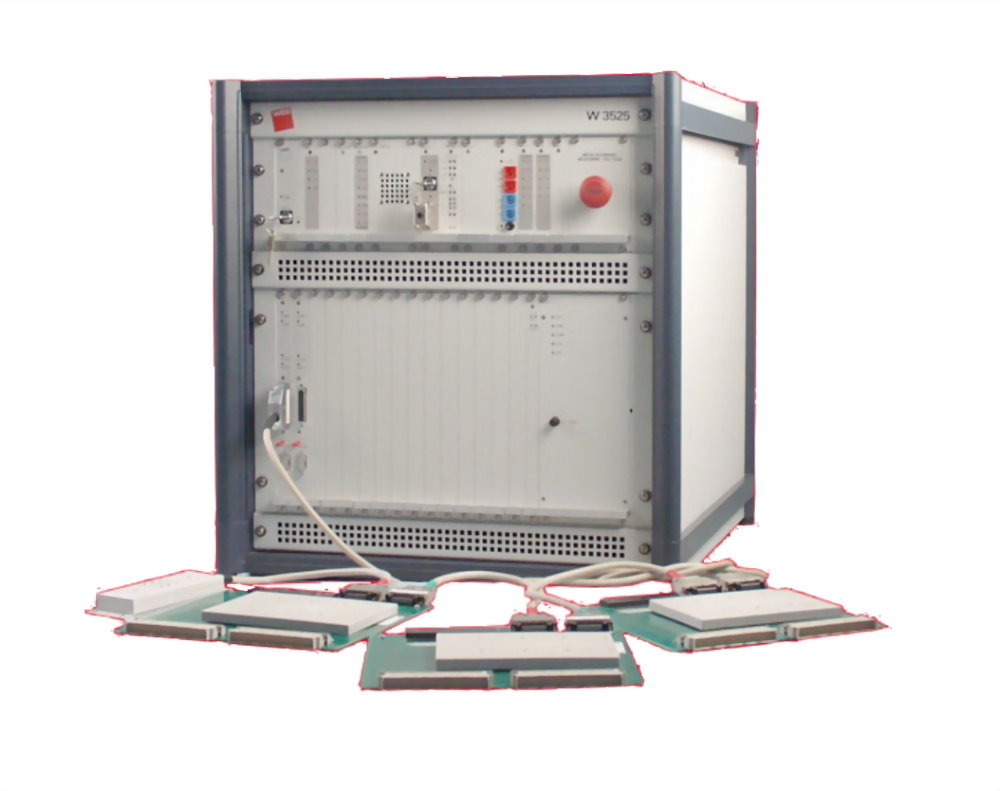

The premier choice for testing large backplanes, card cages and racks. This system integrates test~points into external modular Daisy Chain cassettes eliminating the need for unreliable and expensive adaptation cables while increasing measurement accuracy.

Test & Measurement Performance
Maximum Voltage of 250 VDC (12-Bit Resolution)
Constant Current of 1 mA, 10 mA, or 50 mA
Continuity Thresholds down to 0.5 Ohms (± 2% ± 0.25 Ohms)
Insulation Threshold up to 10 MOhm (± 1%), up to 100 MOhms (± 3%)
Resistor Test from 0.5 Ohms to 100 MOhms (± 3% ± 0.25 Ohms)
Capacitor Test from 20 nF to 40,000 µF (± 10% ± 10 nF)
Diode and Zener Diode Test for Open, Short and Reversed Insertion
Function Test of Keys and Switches

Hardware
Daisy Chain Cassettes Populated with Plug-In Transistor Test Point Modules as Required for the Pin Count of the Target Connector
External Modules with 32, 128, 192 or 256 Test Points
PCI Interface for Connection to a PC (Includes Interface Cable)
Expandable to 307,200 Test Points
Optional Remote Control Interface for Driving Peripheral Devices (Fixtures,
Feeders, etc.)

Dimensions & Weight
19-inch Rack-Mount Enclosure on Wheels
21.7 x 19.7

Easy Test Point Expansion & Distribution
Very High Voltage (5,000 VDC / 3,600 VAC)
RLC Component Measurement
High Measurement Accuracy
Extremely Fast Test Speeds
Functional Testing of Control Assemblies
Automated Fiber Optics Testing
Reduction of Adaptation Cable Length
MIL 810 & MIL 1553 Certification
User-Friendly Software
